| Model number | PLR110 |
| Brand | OnePlus |

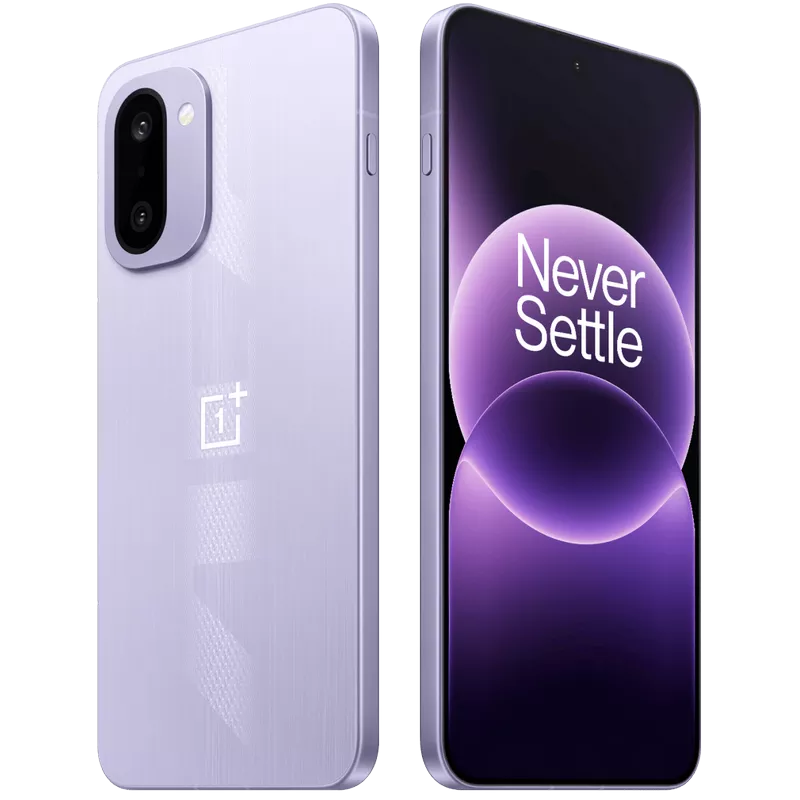

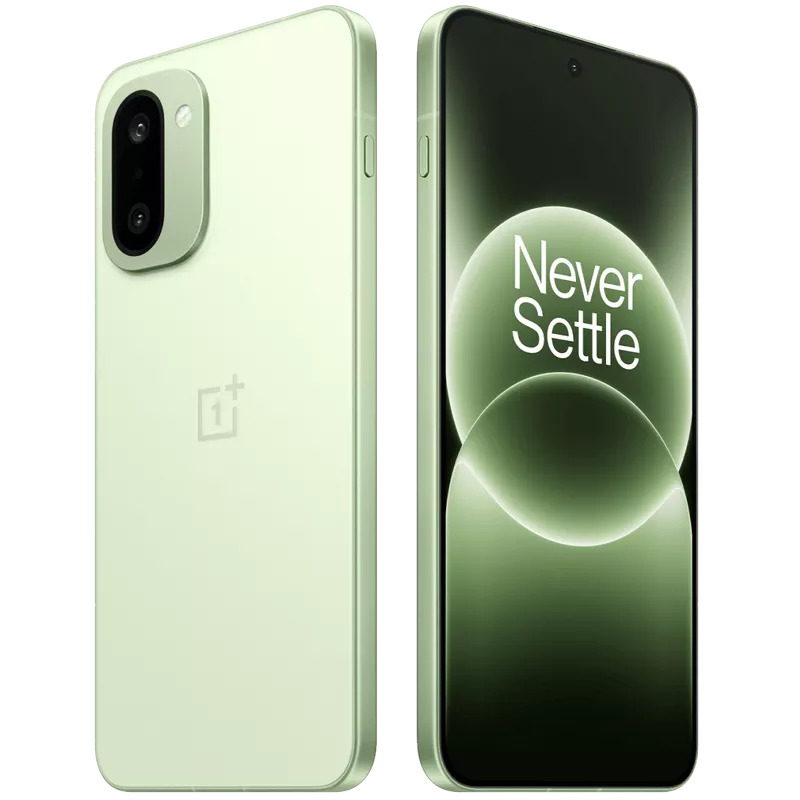

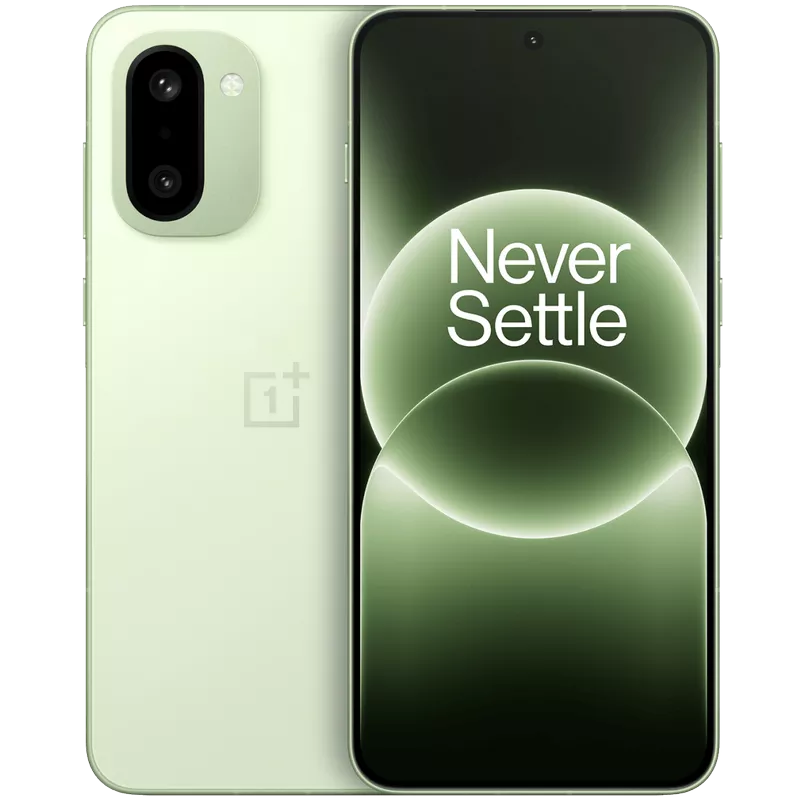

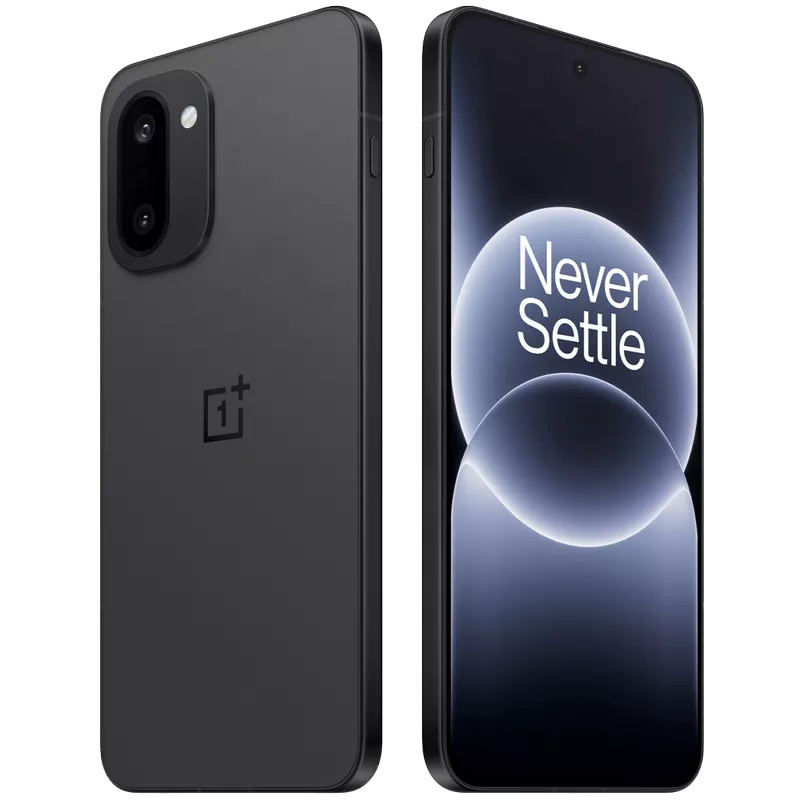

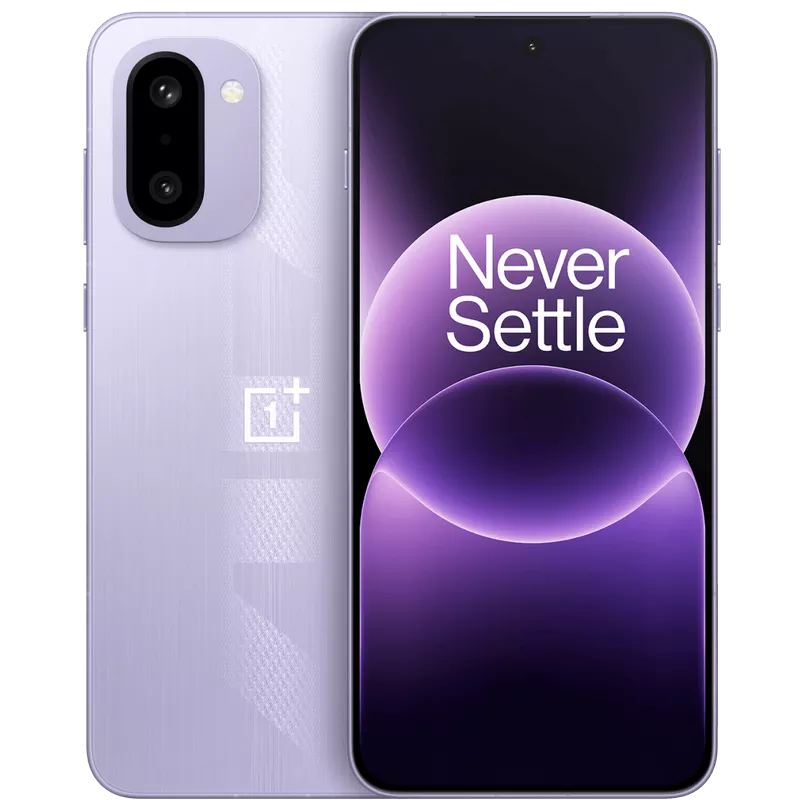

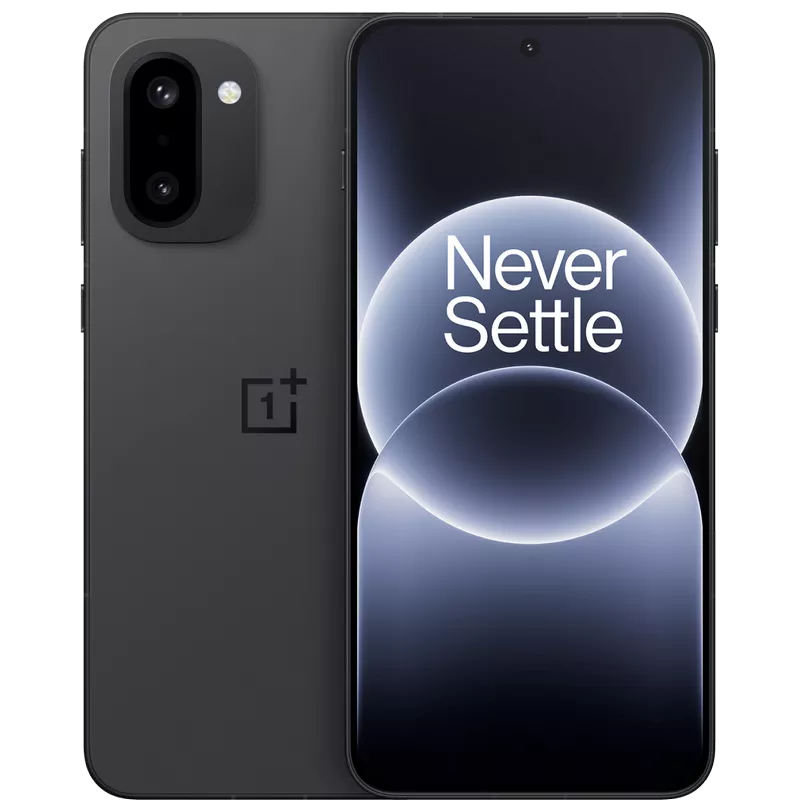

| Color | Flash Black, Electric Violet, Shadow Green |
| Device Type | OnePlus Ace 6T 5G |
| Processor | Qualcomm Snapdragon 8 Gen 5 (3 nm) |
| CPU Speed | 2×3.8 GHz Oryon V3 Phoenix L + 6×3.32 GHz Oryon V3 Phoenix M |
| No of Cores | Octa Core |
| GPU | Adreno 829 |
| Phone Operating System | Android 16, ColorOS 16.0 |
| Sensors | - Fingerprint (under display, ultrasonic)
- Accelerometer
- Gyroscope
- Proximity sensor
- Ambient light sensor
- Color temperature sensor
- Electronic compass
- Infrared remote control
- X-axis linear motor
|
| Protection | IP68/IP69K dust tight and water resistant (high pressure water jets; immersible up to 1.5m for 30 min) |
| Phone Memory (RAM) | 16GB LPDDR5X |
| Storage Capacity | 1TB UFS 4.1 |
| Expandable Memory | No |
| Build | - Front: Crystal Shield Glass
- Back: Glass (Black, Green) or Fiberglass (Purple)
- Frame: Aluminum alloy metal frame (Micro-Arc Oxidation coating)
|
| Phone Display Size | 6.83 inches |
| Display Type | - AMOLED flat screen, 1.07B colors (10-bit)
- Intelligent switching: 60/90/120/144/165Hz
- HDR10+, Dolby Vision, HDR Vivid
- 800 nits (typ), 1800 nits (HBM), 3600 nits (peak)
- PWM+DC dimming, Sunlight display, Eye protection mode
|
| Display Resolution | 1272 x 2800 pixels (~450 ppi density) |
| HD Type | FHD+ |
| Phone Rear camera | - 50 MP Wide (Main): f/1.8, 24mm, 1/1.56″, PDAF, 2-axis OIS
- 8 MP Ultra-wide: f/2.2, 16mm, 112˚, 5P lens
- Zoom: Up to 20x digital zoom for photos (10x for video)
|
| Rear flash | LED monochrome temperature single lamp |
| Front camera | 16 MP, f/2.4, 23mm, 4P lens |
| Front flash | No |
| Camera features | - Rear Camera: Photos, videos, portraits, night scenes, panoramas, movies, slow motion, long exposure, multi-view recording, time-lapse, AI ID photos, professional mode, super text, scan, tilt-shift (Formats: JPG, HEIF, RAW).
- Front Camera: Photos, videos, portraits, night scenes, panoramas, time-lapse, cute stickers, AI ID photos.
|
| Video Recording | Rear Camera: - 4K basic shooting: 120 fps, 60 fps, 30 fps
- 1080P basic shooting: 120 fps, 60 fps, 30 fps
- 720P Basic Shooting: 30 fps
- 4K video stabilization shooting: 120 fps, 60 fps, 30 fps
- 1080P video stabilization shooting: 120 fps, 60 fps, 30 fps
- 720P video stabilization shooting: 30 fps
- 4K slow-motion video recording: 120 fps
- 1080P slow-motion video recording: 240 fps, 120 fps
- 720P slow-motion video recording: 480 fps, 240 fps
- 4K time-lapse photography: 30 fps
- 1080P time-lapse photography: 30 fps
- Supports movie mode video recording
- Supports multi-view video recording.
- Supports video zoom shooting: up to 10x digital zoom.
- Photos, videos, portraits, night scenes, panoramas, movies, slow motion, long exposure, multi-view recording, time-lapse photography, cute snapshots, high-resolution images, AI ID photos, professional mode, super text, scan, tilt-shift.
Front Camera: - 1080P Basic Shooting: 30 fps
- 720P Basic Shooting: 30 fps
- 1080P video stabilization shooting: 30 fps
- 720P video stabilization shooting: 30 fps
- 1080P time-lapse photography: 30 fps
- Supports multi-view video recording.
|
| Battery Size | 8300 mAh |
| Battery Type | Non-removable Si/C Li-Ion |
| Charging | - Maximum: 100W SuperVOOC, 100W UFCS Fusion Fast Charging
- Compatible: 80W SuperVOOC, 44W third-party UFCS, 55W PPS, 18W PD/QC
- Features: Bypass charging support
|
| Cellular Connectivity | GSM / WCDMA / LTE / 5G NR (Dual 5G support) |
| Number of SIM Cards | Dual SIM |
| SIM Size | Nano-SIM + Nano-SIM |
| Total Number of Slots | 1 (Dual-sided tray) |
| Slot Details | 5G/4G/3G/2G (Both slots) |
| Supported Network Types | - 2G GSM: 850/900/1800MHz
- 3G WCDMA: Frequency bands 1/4/5/6/8/19
- 4G LTE FDD: Bands 1/3/4/5/8/18/19/26/28A/66
- 4G LTE TDD: Frequency bands 34/38/39/40/41/42/43/48
- 5G NR: n1/n3/n5/n8/n18/n26/n28A/n38/n40/n41/n48/n66/n77/n78
|
| GPS Type | - Beidou (B1I+B1C+B2a), GPS (L1+L5), GLONASS (G1), Galileo (E1+E5a), QZSS (L1+L5)
- Supports A-GNSS assisted positioning, wireless LAN positioning, and cellular network positioning.
|
| Wireless | - Supports Wi-Fi 7 (802.11be)
- Supports Wi-Fi 6 (802.11ax)
- Supports Wi-Fi 5 (802.11ac)
- Supports 802.11a/b/g/n
- Supports Wi-Fi Display
- Supports WLAN network sharing
- Supports Wi-Fi 5GHz 160MHz
- Supports 2×2 MIMO
|
| Bluetooth | - Bluetooth 6.0, Bluetooth Low Energy, BLE Audio
- SBC, AAC, LDAC, aptX, aptX HD, aptX Adaptive, LHDC 5.0
|
| NFC Support | - Supports reading and writing NFC cards (13.56MHz NFC cards).
- Supports NFC-SIM (SIM1 card slot only)
- Supports HCE payment
- Supports eSE (supports subway and bus fares in 300+ cities, and multiple functions including OnePlus Pay, access cards, car keys, and citizen electronic identity (eID). A simple tap enables convenient access and secure payments.)
|
| Charging Port Type | USB Type-C 2.0 |
| Video supported formats | MP4, HEVC, etc. |
| Audio supported formats | Standard Android formats, OReality Audio |
| Loudspeaker | Two speakers: Lower speaker 1510 super-linear speaker + Upper speaker 1012 super-linear speaker |
| Audio Jack | No |
| Audio | Stereo sound, 2 Microphones, Noise reduction |
| Dimensions (H x L x W) | 163.41 x 77.04 x 8.1 mm (Violet) / 8.3 mm (Black, Green) |
| Weight | 211g (Violet), 216g (Black), 217g (Green) |
| In The Box | - OnePlus Ace 6T
- Power Adapter (100W)
- Protective case
- USB Type-C Cable
- SIM Ejector Tool
- Quick Start Guide
|
